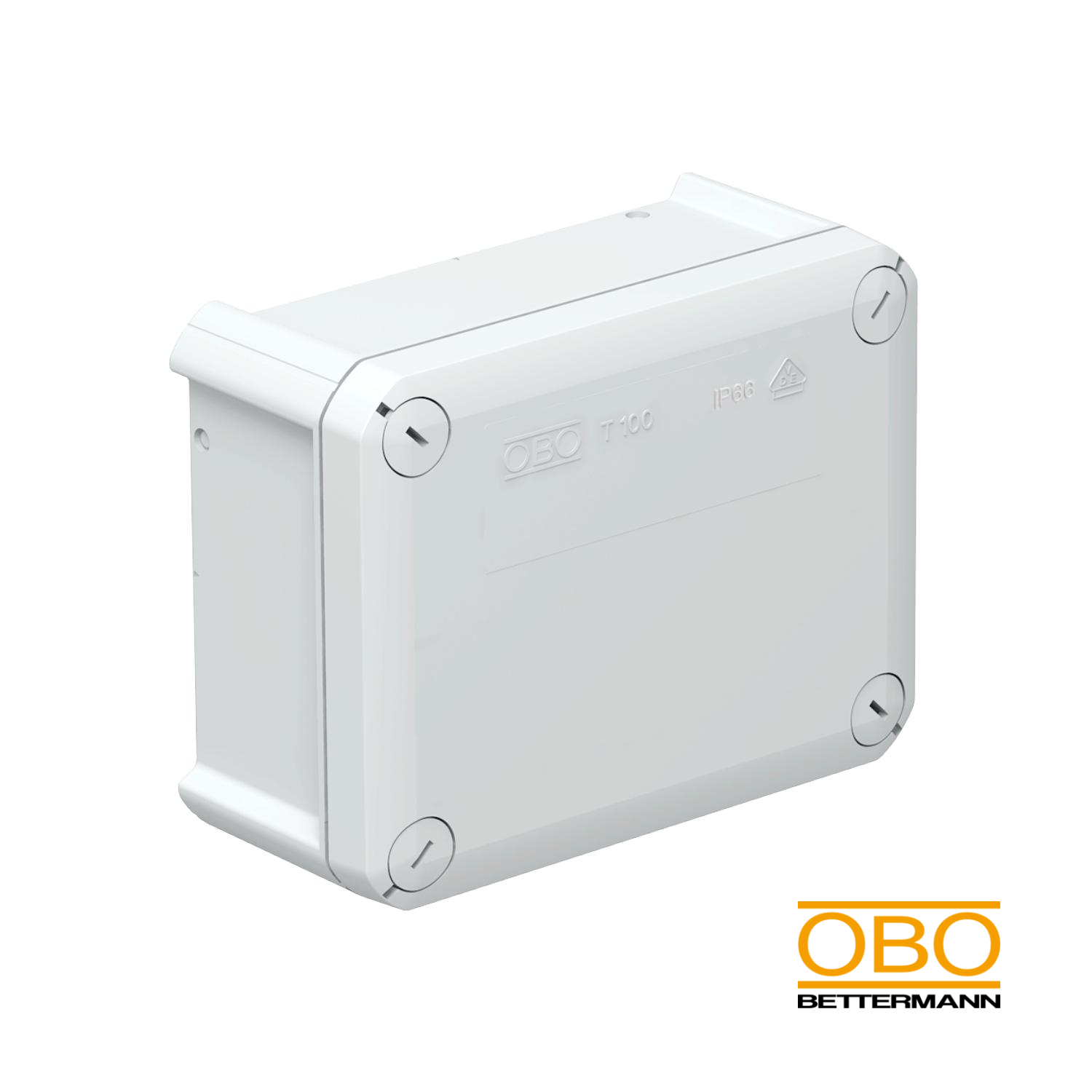

OBO Junction Box T 100, Closed
Compact, durable junction box for indoor and outdoor applications. Made from halogen-free, UV-resistant materials and a clamping cover for secure closure.
Features
- Protection Rating: IP66
- Nominal Voltage: 500 V
- Nominal Cross-Section: 10 mm²
- Cable Entries for cable diameter: No except the rear
- Cover Type: Clamping cover
- External Dimensions: 114 x 114 x 57 mm
- Clear Internal Dimensions: 150 x 116 x 67 mm
- Order in multiples of: 5
- Price per: Unit
| Sealable | yes | Material | Polypropylene |
|---|---|---|---|
| Measured insulation voltage Vi | 500 V | Mounting type | Wall/ceiling mounting |
| Nominal cross-section, min. | 10 mm² | Nominal voltage | 500 V |
| Permitted temperature range, max. | 60 °C | Permitted temperature range, min. | -5 °C |
| Protection rating | IP66 | Protection rating IK code | IK07. |
| Maintain electrical functions | Without | Shape | Rectangular |
| Transparent lid | no | Type of entry | None |
| Type of housing penetration | Without | Weatherproof | no |
| Width | 116 mm | with lid | yes |
| With screening | no | Expandable | yes |
| CO₂ Footprint (GWP) Cradle-to-Gate | 0,6772 kg CO₂e / 1 Piece | Colour | Light grey; RAL 7035 |
| Cover | Not transparent | Cover fastening | Screwed |
| Dimension | 150x116x67 | Entries | None |
| Entry from rear | yes | Equipment | Without |
| Clear internal dimensions | 136x102x57 mm | Explosion-tested version | no |
| Flame-resistant | Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C | For Ex zone | Without |
| For Ex zone dust | Without | For Ex zone gas | Without |
| Halogen-free | yes | Height | 67 mm |
| Length | 150 mm |
